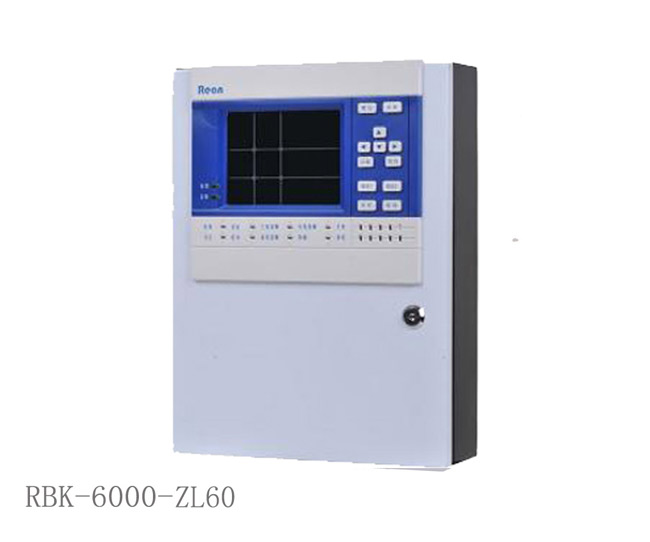

RBK-6000-ZL60(N)气体报警控制器
|
☆产品名称:RBK-6000-ZL60(N)气体报警控制器
|
☆产品别称:RBK-6000-ZL60(N)气体报警控制主机
|
☆供电电源:AC220V
|
☆防护等级:IP30
|
产品简介
----------------------------------------------------------------------
产品型号:RBK-6000-ZL60/RBK-6000-ZL60N(RBK-6000-ZL60N "N"的意思是自带备电)
可监测气体种类:可燃气体,有毒有害气体
RBK-6000-ZL60N型气体报警控制器通过查询方式获得探测器信息,经过高速CPU数据处理,通过LCD显示出探测器相应的浓度、状态并输出相应的控制信号。
本产品设计遵循国标GB16808-2008。控制器外形美观、显示界面清晰、操作简单,产品整机采用模块化结构设计,便于维护。
产品说明
◆ 工作方式
M-BUS 两总线通讯,负载容量≤60路。
◆ 可靠性高
CPU采用16位单片机,运行速度快,可靠性高。
◆ 操作方便
可对在线探测器远程校零,标定。
◆ 安全性高
多重密码保护。操作级别不同,密码不同,安全性高。
◆ 显示直观、清晰
采用高亮度LCD显示,可实时显示主机工作时间,报警、故障记录。大容量报警,开、关机记录,历史记录掉电不丢失。
◆ 多种信号输出
2组开关量输出。通过配接模块可选择输出4-20mA,GPRS/GSM,UDP/TCP/HTTP信号。
◆ 安装方便
专用的安装支架,现场安装方便。
结构 | 重量:4.4㎏ |
---|---|
材质:Q235+ABS | |
尺寸:290mm×380mm×94mm | |
电气 | 供电电压:AC220V±15%、50-60Hz |
功率: ≤10W | |
信号输入:M-BUS信号 | |
继电器容量:5A/220V | |
存储容量:报警记录:1000条;开机记录:100条;关机记录:100条 | |
认证 | 公安部:消防电子产品合格评定中心 |
应用标准:GB16808-2008 | |
环境 | IP等级:IP30 |
工作温度:0℃~40℃ | |
湿度范围:10%RH~95%RH | |
压力范围:86Kpa~106Kpa | |
存储温度:-10℃~50℃ | |
产品安装 | 配套使用的探测器:RBT-6000-ZL、RBT-6000-ZLG、RBT-6000-ZLGX、RBT-6000-ZLGM型气体探测器 |
连接探测器的数量:可连接1~60只气体探测器; | |
与气体探测器接线方式:RVS 2*2.5mm2; | |
气体报警控制器为非防爆的产品应安装在监控室或室内安全区域或无爆炸性气体的环境下,采用壁挂式安装; | |
安装高度: 当气体密度<空气密度,在顶棚下30-60cm;
当气体密度>空气密度,在地面上30-60cm;
氧气、氮气等,在地面上150cm左右。
|
RBK-6000-ZL60气体报警控制器尺寸图:

RBK-6000-ZL60N Gas Alarm Controller
Product Model: RBK-6000-ZL60/RBK-6000-ZL60N
(‘N’, means the standby power is self-carrying)
Anthor name: Gas alarm control host
Monitoring gases: flammable gases,toxic and harmful gases
Summary
RBK-6000-ZL60N Gas Alarm Controller gets information from detector by query mode, then handles data with high-speed CPU, displays the corresponding concentration and status on LCD, outputs the corresponding signals.
Following GB16808-2008, the controller designed with modular structure, good looking appearance, clear display panel, easy to operate, easy to maintenance.
Product features
1. Working mode: 2 M-BUS communication, load capacity ≤60 Roads(2 loops)
2. High reliability: 16 bit singleship CPU, high speed, high reliability
3. Easy operation: remote zero correction and calibration on detector
4. High safety: multiple password protection, different password for different operation level
5. Visual and clear display: highlight LCD, displaying in real time the working time, alarm and breakdown record of controller. High capacity keeps alarm records, boot and shut-down records, historical records after power-fail
6. Multiple signal output: 2 group on-off output, selectable signal output by Matching module: 4-20mA,GPRS/GSM,UDP/TCP/HTTP
7. Easy installation: special stand structure makes it easy to install on spot
8. Standby power: self-carrying
Technical parameters
Structure
Weight: 4.4kg
Materials: Q235+ABS
Size: 290mm×380mm×94mm
Electricity
Supply voltage: AC220V±15%、50-60Hz
Max power: 10W
Signal input: M-BUS
Electric relay: 5A/220V
Storage Capacity
1000 alarm records, 100 boot records, 100 shut-down records
Enviornment
IP Dgree: IP30
Working temperature: 0℃~40℃
Humidity range: 10%RH~95%RH
Pressure range: 86Kpa~106Kpa
Storage temperature: -10℃~50℃
Installment:
2. Connectable detectors:1-30 Pieces
3. Connection mode: RVS 2*2.5mm2;
4. Installation mode:Wall mounted. The controller is non explosion-proof, installed in monitor room, or safety area, or the site of non explosive gas .
5. Installment height:
Gas density < air density, 30-60cm below the ceiling;
Gas density < air density, 30-60cm below the ceiling;
Gas density > air density, 40-60cm over the ground;
O2, N2:150cm over the ground
